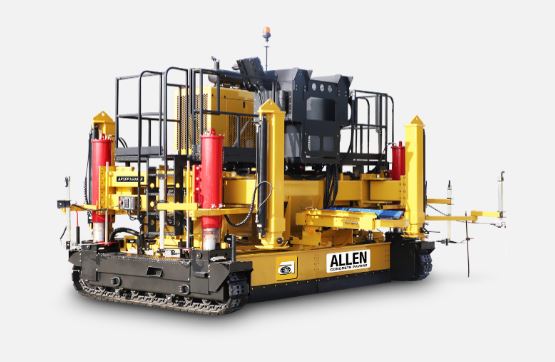

The Allen 1600 Slip-Form Paver is designed for the polyester concrete overlay market and is used to pave overlays on roadways and bridge-deck surfaces in 12 foot and 16 foot wide applications. The optional conveyor brings material straight from the truck to the auger chamber and disperses it to the paving pan (equipped with Minnich Pan Vibrators) where the material is “screeded” to grade, followed by a tining rake to add texture to the final surface. This process is complete in a single pass, making this paver ideal for any polyester overlay project. This unit also has a built-in “cross-slope” grade sensing system making sure the final surface elevations meet the project specifications.
Call for quote
Specifications :
Warranty:
1 year
ENGINE: |
JOHN DEERE 4.5L (T4F) |
HORSEPOWER: |
173 HP / 129 KW |
FUEL TYPE: |
DIESEL |
FUEL RESERVOIR: |
110 GAL / 416.4 LTR |
PAVING WIDTHS: |
12 FT OR 16 FT / 3.6 M OR 4.8 M |
PAVING DEPTH: |
UP TO 6 IN / UP TO 15.24 CM |
VIBRATION SYSTEM: |
6 HYDRAULIC PAN VIBRATORS |
CRAWLER TRACK LENGTH: |
10 FT OR 12 FT / 3.1 M OR 3.6 M |
HYDRAULIC OIL RESERVOIR: |
100 GAL / 378.5 LTR |
MATERIAL CONVEYOR: |
STANDARD |
WEIGHT: |
37,000 LBS / 16782.9 KG |
TRANSPORT WIDTH: |
7.75 FT / 236.2 M |
TRANSPORT LENGTH: |
17 FT / 518.16 M |
WARRANTY: |
1 YEAR |
