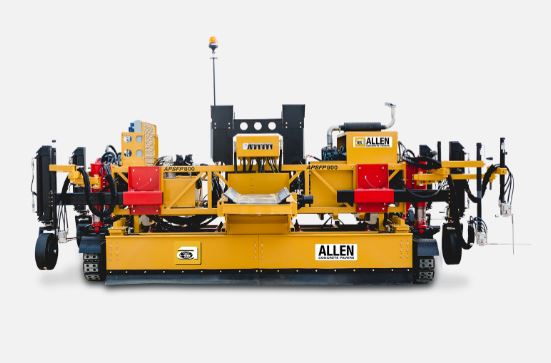

The Allen 1600 Slip-Form Paver is designed for the polyester concrete overlay market and is used to pave overlays on roadways and bridge-deck surfaces in 12 foot and 16 foot wide applications. The optional conveyor brings material straight from the truck to the auger chamber and disperses it to the paving pan (equipped with Minnich Pan Vibrators) where the material is “screeded” to grade, followed by a tining rake to add texture to the final surface. This process is complete in a single pass, making this paver ideal for any polyester overlay project. This unit also has a built-in “cross-slope” grade sensing system making sure the final surface elevations meet the project specifications.

Specifications :
Warranty:
1 year





ENGINE:

LIQ COOL KUBOTA V3800DI-T-E38 (T3)

HORSEPOWER:

99 HP / 73.8 KW

FUEL TYPE:

DIESEL

FUEL RESERVOIR:



PAVING WIDTHS:

12 FT / 3.6 M

PAVING DEPTH:

UP TO 6 IN / UP TO 15.24 CM

VIBRATION SYSTEM:

6 HYDRAULIC PAN VIBRATORS

CRAWLER TRACK LENGTH:

6 FT 4 IN / 1.9 M

HYDRAULIC OIL RESERVOIR:

42 GAL / 158.9 LTR

MATERIAL CONVEYOR:

STANDARD

WEIGHT:

14000 LBS / 6350 KG

TRANSPORT WIDTH:

7.75 FT / 236.2 M

TRANSPORT LENGTH:

17 FT / 518.16 M

WARRANTY:

1 YEAR
